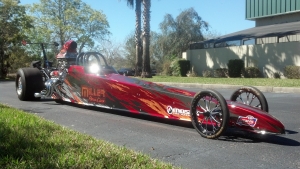

Custom Car Builder Chassis 4-link Top Dragster

Name4-link Top Dragster
CategoryChassis
Price$19995.00
Features
  • 247" - 255" Wheelbase
  • Extreme duty 1 3/4" anti roll
  • Extreme duty Chassis built for 3000 H.P.
  • 4130 Chromoly Chassis - NEW NARROW FRONT DESIGN
  • Fully fixtured, Professionally welded
  • Streamline bipod front end
  • Low Profile Cage with custom designed roll cage exit handles
  • Lightweight aircraft dzus's and tabs throughout
  • Custom dzus in fiberglass seat with custom embroidered seat cover
  • Seat belt mounts and seat belt hooks
  • Adjustable brake pedal with grease serts-NEW NO LOCK OUT DESIGN
  • Adjustable throttle pedal
  • Adjustable Pedal Stop
  • Dual parachute mount and pull points
  • Master cylinder mount NEW NO LOCKOUT DESIGN
  • Master cylinder linkage
  • Brake line tabs
  • Complete steering linkage with safety stops
  • Custom polished steering wheel
  • Stilleto 4130 chromoly spindles with caps,arms,thrust washer,and all necesary hardware
  • Stilleto steering box with dust boots
  • Custom formed CNC dash panel with all cut-outs-many styles to chose from
  • Custom removeable dzus on dash cover with dzus
  • Universal shifter mount
  • Remote master cut-off switch and cable mount
  • Weight bar mounts
  • Helmet hook
  • Wiring terminal strip mts.
  • C02 bottle mt. tabs behind dash for easy access
  • Charge post mt.
  • On off cable mts.
  • CNC dual parachute realease handles and mts.
  • Single or dual battery tray and hold down
  • Ground studs welded throughout chassis
  • Dzus in knee cover
  • Dzus in ignition tray
  • Cable slots throughout chassis with weld on support plates
  • Fuel cell with large filler neck ,-10 Outlet,-8 Return,-6 vent
  • Fuel cell protector plate
  • 5052 alloy 2 piece aluminum floor pans (dzus in ) and 2 piece aluminum fire wall ( dzus in )
  • Custom designed CNC aluminum rear protector plate
  • Custom designed CNC front and mid motor plates, T 6061 aluminum with super duty midplate mounts
  • Custom Radiator mount tabs
  • Custom Transmission cooler mount tabs
  • Custom trans ring with handle
  • Lightweight tran stabilizer rods
  • Remote water pump mt.
  • Eliptical parchute pack mt. and pull point
  • Tail light mount ? NEW OVER CHUTE DESIGN NHRA/IHRA LEGAL
  • Streamline aircraft 5052 alloy aluminum body with special ground effects lip , doubled up on bottom for strength
  • Pro glass lexan windscreen
  • Custom fiberglass nose
  • Grade 8 hardware throughout assembly
  • 4130 Chromoly rod ends
  • Custom front 4-link brackets gusseted for maximum shear strength
  • 1-1/4 x .095 4130 4-link tubes
  • Custom 4130 X-arm with shock mounts
  • 4130 chromoly 4-link rod ends
  • Strange double adjustable shocks with 200lb coilover spring
  • Fabricated 9" sportsman housing internally gusseted and braced
  • 3" symetrical housing ends
  • Inspection/filler bung with cap
  • Rear End drain plug
  • Rear end vent
  • Custom designed swing arm anti roll system & CNC Billet aluminum arms
  • Custom 1350 series billet driveshaft
  • Slip joint front end
