Mega dial switch panel |
|
|
|
|
|
| Name | Mega dial switch panel |
| Category | Delay boxes and switch panels |
| Price | $730.00 |

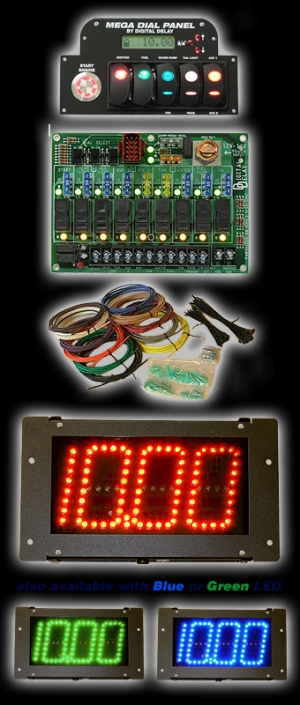

| Description | The Mega Dial Panel is a brand new product designed by racers at Digital Delay and Biondo Racing, consisting of
a Switch Panel
a Digital Dial-in System
a Relay Board
a Wiring Kit.
The sleek and compact Switch Panel is the main part of the system and includes 6 labeled switches to control your car's most important functions. The unique starter button and premium grade switches combine a new age design with functionality. The ignition and fuel pump switches are dual position switches while the Fan / Water Pump, Head light / Tail light, and Aux 1 / Aux 2 are all three position switches. It is made to easily fit into a dragster's dash (door car / roadster mounting kits soon to come) with the overall size similar to the overall size of the conventional switch panel.
A very unique part of the panel is the built-in dial board controller which plugs into the External Digital Dial Board (included, with RED LED?s) via a simple cable connection (14 foot telephone cable included).
To simplify the wiring process, the Switch Panel plugs into our The Relay Board using the supplied heavy duty cable. The Relay Board is the ?power distribution board? and was built with durability in mind. It is capable of handling a 100 amp load with the supplied 6 gauge wire that connects from the high current connector on the Relay Board to the master cut off switch.
The Relay Board includes dedicated relays for each switch. Each relay includes its own status indicator light to let you know which circuit is on. Each relay also has a dedicated fuse assigned to it with each fuse.
Another unique feature, designed with safety in mind, was the ?Panic Button feature?. The panic / emergency post on the relay board allows you to directly connect a ?panic button? to this post which will quickly shut the power to the car off in case of an emergency and could save your life if you run off the end of the track, etc.
The relay board also includes the ?Dual Select? feature which allows you to individually customize how to control each of the three position switches. For example; the switch on the Mega Panel Labeled FAN / Water Pump turns on the fan and water pump in one position and the water pump in the other position. By turning on the Dual Select dip switch located on the relay board, you can change it so that the fan only is on in the fan position and the water pump only is on in the other position.
The Wiring Kit is the fourth component of the Mega Panel and it includes enough color coded wire, connectors, wire ties and a complete color coded diagram to help you neatly wire a vehicle.
|
|
